Shaker-system med forstærker

LDS V895-440 HBT900C + SPA50K

Stand: meget god (brugt), Weiss Model: WKL 34/60 Weiss Climate Chamber, Air-Cooled Refrigerant converted to R-452A Temperature range: -60°C to +150°C Chamber volume: 34 liters Standard pass-throughs included: R1 NW 50 mm L1 NW 120 mm Internal dimensions: Height 310 mm x Width 324 mm x Depth 300 mm External dimensions: Height 1740 mm x Width 630 mm x Depth 970 mm Specifications for temperature testing: Temperature range: -60°C to +150°C Temperature deviations at steady state (per IEC 60068-3-5): Temporal temperature fluctuation at working space center: ±0.3 to ±1 K, ±1 to ±2 K Spatial temperature variation (temperature gradient): 2 to 4 Temperature change rate (per IEC 60068-3-5): Heating: 2.5 K/min Cooling: 3 K/min Maximum heat compensation: 550 W Specifications for climate testing: Temperature range: +10°C to +95°C Humidity range: 10 to 98% RH Temperature and humidity deviations at steady state (per IEC 60068-3-5): Temporal temperature fluctuation at working space center: ±0.3 to ±0.5 K Spatial temperature deviation: ±0.5 to ±1.5 K (temperature gradient): 1 to 3 Temporal humidity fluctuation at working space center: ±3 to ±5% RH Operating data: Chamber lighting: Halogen bulb 12V, 20W Rjdpfxstr Dino Abnor Nominal voltage: 1/N / PE AC 230 V ±10% 50 Hz Nominal power: 2.5 kW Nominal current: 11 A On-site fuse: 16A slow-blow Heat emission (air-cooled chambers): Max. heat emission to environment: 1700 W Refrigerant: R-452A / R23 Weight: 140 kg Important safety information for buyers: The following procedures are carried out on our offered chambers prior to sale: 1. Functional check and replacement of necessary components 2. If necessary, refilling with legally approved refrigerant 3. Leak test with certificate 4. After successful inspection, the chambers are subjected to a documented test run. Condition: used Scope of delivery: (see picture) (Amendments and errors in the technical data and specifications reserved!) For further questions, please contact us by phone.

Stand: god (brugt), Weiss Model: SC/KWT 450 Salt Spray Chamber Technical Data: Test Chamber Volume: 450 liters Maximum Load: 100 kg Brine Storage Tank: 180 liters External Dimensions: Height 920 mm, Width 1930 mm, Depth 800 mm Test Chamber Dimensions: Height 740 mm, Width 850 mm, Depth 570 mm Areas of Application: Rsdsudvg Rspfx Abnjr Corrosion Tests: Salt Spray Test: ambient temperature up to +50°C Condensation Water Test: ambient temperature up to +45°C Humidifier: +75°C Temperature Consistency: The temporal temperature deviation is ± K. Voltage: 1/N/PE AC 230V ±10% 50Hz Rated Power: 2.0 kW Rated Current: 8.5 A Combination: Salt Spray Test SS: DIN 50021 Condensation Water Test KFW: DIN 50017 Standard Climate (Ventilation): DIN 50014 Weight: 180 kg Condition: used Scope of delivery: (see picture) (Subject to changes and errors in the technical data. All information without guarantee!) For further questions, we are happy to assist you by phone.

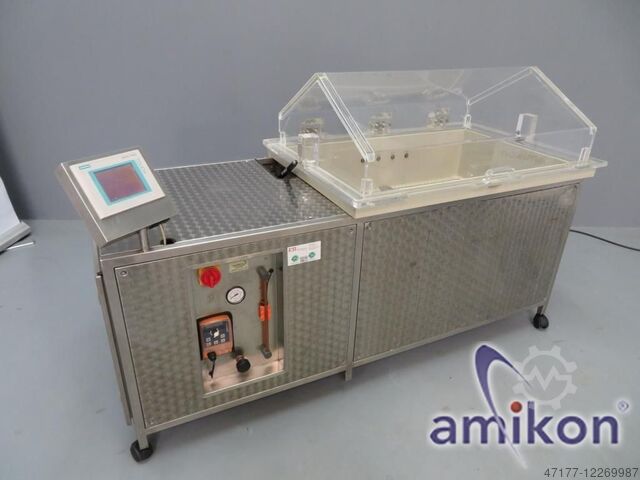

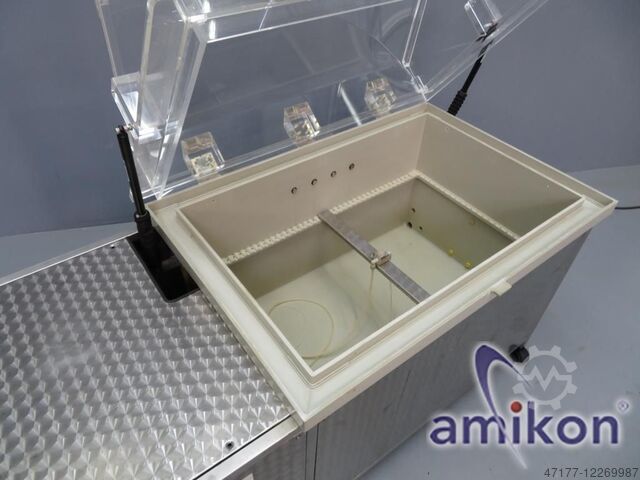

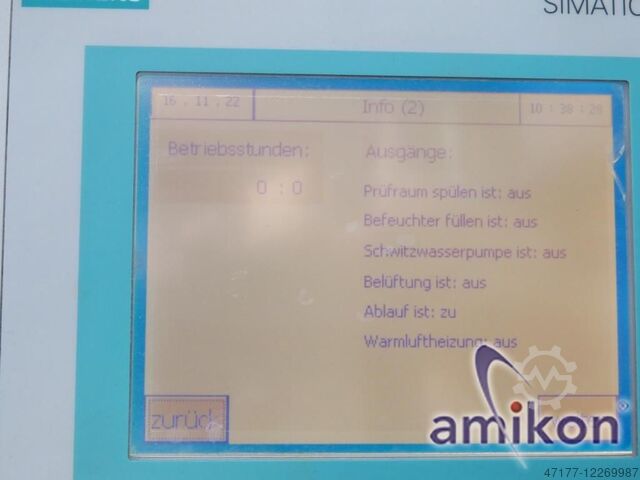

Stand: meget god (brugt), Her tilbyder vi en Köhler salt-spraytestkammer. Köhler salt-spraytestkammer korrosionskammer Köhler salt-spraytestkammer HKT 500 Betjening via touchpanel Interne dimensioner B x D x H (uden låg): 1880 x 840 x 1210 mm Testkammerens volumen: 500 l Temperaturområde i kammer: omgivelsestemperatur til 50°C Strømforsyning: 230V 1P/N/50Hz 3000W Type: HKT 500 WTG 400 kg Stand: brugt Leveringsomfang: (se billede) (Ret til tekniske ændringer og fejl forbeholdes!) Yderligere spørgsmål besvares gerne telefonisk. Rjdpfx Absn Arqdener

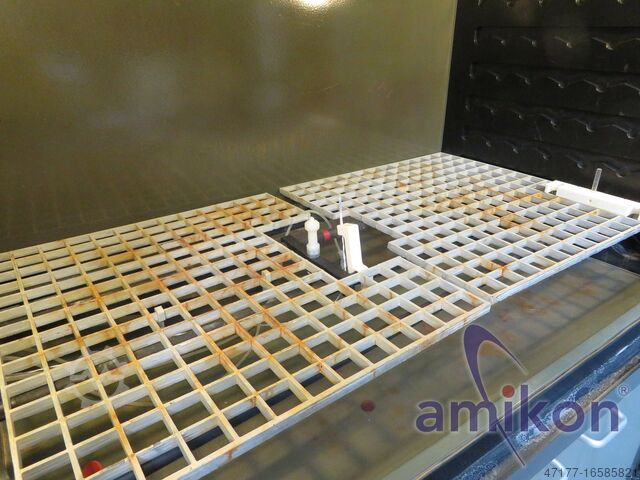

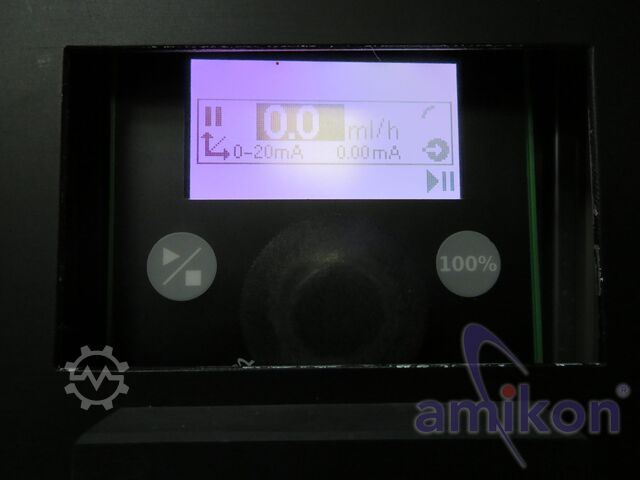

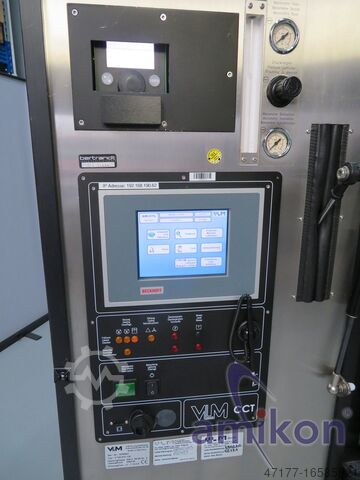

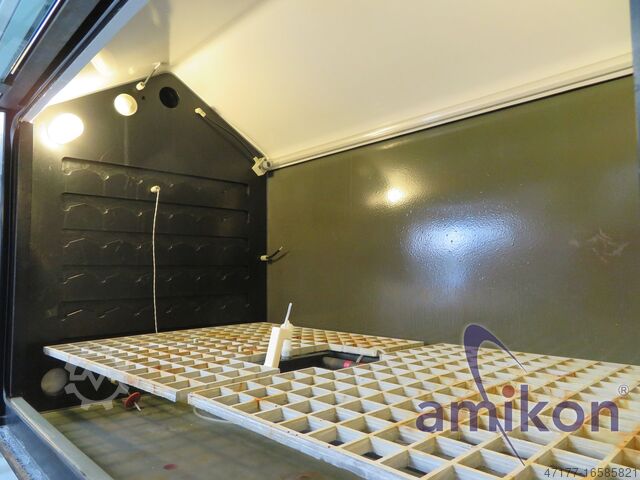

Stand: god (brugt), VLM Rjdpfx Ast Igc Sjbnor Type: V.745.672.120 Model CC 1000-FL HL Korrosionsprøveskab til saltspraytests Specifikationer: Prøverumsvolumen: ca. 1000 L Prøverumsdimensioner (B x D x H1/H2): 1400x800x800/1020 mm Døråbningsmål (B x H): 1300x680 mm Kabinet ydre mål (B x D x H): 2162 x 995 x 2080 mm Arbejdstemperaturområde: 5°C over rumtemperatur op til +80°C Højlast-udførelse til belastning op til 350 kg Processtyring: Beckhoff PLC, farvet touchskærm, display, 50 lagringspladser for testmetoder, 50 lagringspladser for testsegmenter, ramper: fugt-temperatur over hele arbejdsområdet, Ethernet-tilslutning Elektrisk tilslutning: 400 V, 50 Hz, 5700 W Vandtilslutning: minimum 2,5 bar, hanetilslutning 3/4" Udvendigt gevind til tilslutning af ionbytterpatron Trykluft: 7-8 bar Spildevand: Sifon / 30 mm ID slangestuds Udstødningsluft: Rørende AD 75 mm Driftstilstande: Saltspray Kondensvand (CWC) Ventileret rumluft Varmluft Styret fugt

Produktionsår: 2013, stand: meget god (brugt), Vakuum THERMO ovn, maks. temp. 200°C Rsdpfx Aexcb H Uebner

Stand: god (brugt), Producent: LIEBISCH Model: 42016001 Rjdopbv Dpjpfx Abnsr Testkammer: 1000 liter

Stand: meget god (brugt), Weiss Type: WK 27'/50-150 Klimaskab Vandkølet Tekniske data: Testkabinets betegnelse: WK 27'/50-150 Udvendige mål Højde 3500 mm, bredde 3400 mm, dybde 6000 mm Styringsskabets mål Højde 2000 mm, bredde 2400 mm, dybde 400 mm Indvendige mål Højde 3000 mm, bredde 3000 mm, dybde 3000 mm Gulvbelastning 30000 N/m³ (fladelast) Testvolumen: ca. 27.000 liter Prøveemnets vægt 1000 kg Køle-/varmedrift -50°C til 150°C Opvarmning 1,0 K/min Nedkøling 1,0 K/min Temperaturstabilitet ±0,3 til 1,0 K (tidsmæssigt) Temperaturstabilitet ±0,1 til 0,5 K (tidsmæssigt) Klimadrift 10 – 90°C Fugtighed 10...98 % r.f. Temperaturstabilitet ±0,1 til 0,5 K (tidsmæssigt) Dugpunktområde +4 til +84 °C 3/N / PE AC 400 V ±10% 50 Hz Vægt: 7000 kg Rjdpevx Nfbofx Abner Kølemidler R23 og R404A Med ekstra bundplader for øget gulvbelastning Til din sikkerhed som køber, følgende information! Følgende punkter bliver udført på vores tilbudte kamre på forhånd: 1. Funktionskontrol og udskiftning af nødvendige komponenter 2. Ny påfyldning med lovpligtigt kølemiddel 3. Efter vellykket kontrol gennemføres en testkørsel, som overvåges med kalibreret udstyr. Stand: brugt / used Leveringsomfang: (se billede) (Forbehold for ændringer og fejl i de tekniske data og oplysninger!) Yderligere spørgsmål besvarer vi gerne telefonisk.

Stand: meget god (brugt), Weiss Model: WK3-2200/40/5/V Weiss Climate Test Chamber, water-cooled Specifications for temperature tests: Temperature range: -40°C to +180°C Temperature change rate: Heating 6.0 K/min Cooling 11.5 K/min Temperature deviation: Temporal ± 0.8 K Spatial ± 2.0 K Heat compensation max. 8000 W Specifications for climate tests: Temperature range +10 to +95 °C Dew point temperature range: +4 to +94°C with closed floor element Humidity range: 10 to 95% RH Temperature deviation (temporal) ± 0.3 K Humidity deviation (temporal) ± 3% RH Temperature uniformity: Spatial ± 1.0 K Heat compensation max. 500 W Test chamber volume: 2160 liters Test chamber dimensions: Height 1115 mm, Width 1400 mm, Depth 1400 mm External dimensions, lowered: Height 2318 mm, Width 1860 mm, Depth 3658 mm External dimensions over shaker: Height 2710 mm Redjw I Rxrepfx Abner External dimensions at max. stroke height: 3038 mm Exchangeable floor dimensions: Width 1600 mm, Depth 1504 mm Operating data: Rated voltage: 3/N/PE AC 400V ±10% 50Hz Rated power: 38.0 kW Rated current: 63.0 A Customer-side fuse protection: 80 A slow-blow Refrigerant: R 404A Weight: approx. 2100 kg Important safety information for you as a buyer: The following work is carried out on our offered chambers beforehand: 1. Functional test and replacement of necessary components 2. If required, new filling with legally compliant refrigerant 3. Leak test with certificate 4. After successful inspection, chambers undergo a documented trial run. Condition: used Scope of delivery: (see photo) (Specifications and information are subject to change and errors!) We are happy to answer further questions by phone.

Stand: god (brugt), Weiss Type: WK1-1000/70 Weiss climate test chamber, water-cooled (Refrigerant converted to R-452A) Control unit: "Touch panel" All control and operating commands can be activated directly via the user-friendly "touch panel" interface by simply touching the function symbols. Cable Ports The test chamber is equipped with cable ports on both the left and right sides, allowing measurement cables and test equipment to be routed into the test chamber interior. Cable ports: 1 port, diameter 125 mm, installed on right 1 port, diameter 50 mm, installed on left Volume: 990 liters Test chamber internal dimensions: Chamber: width 1100 mm, depth 950 mm, height 950 mm Housing: width 1385 mm, depth 1850 mm, height 1980 mm Temperature test specifications: Minimum temperature: –70 °C Maximum temperature: +180 °C Temperature deviation over time: ±0.1 to ±0.5 K Temperature uniformity within chamber: ±0.5 to ±2 K Temperature change rate, heating: 4 K/min Temperature change rate, cooling: 2.5 K/min Maximum heat compensation: 2750 W Climatic test specifications: Temperature range: +10°C to +95°C Humidity range: 10 to 98% RH Temperature deviation over time: ±0.1 to ±0.3 K Temperature uniformity within chamber: ±0.5 to ±1 K Humidity deviation over time: ±1 to ±3% RH Operating data: Rated voltage: 3/N/PE AC 400V ±10% 50Hz Rated current: 29A Rated power: 19.8 kW Rjdpervx Ezsfx Abnjr Refrigerants: R-452A / R23 Weight: approx. 910 kg For your peace of mind as a buyer, please note the following information: The following points are carried out on our chambers before sale: 1. Function check and replacement of necessary components 2. Refilling with legally compliant refrigerant if required 3. Leak test with certificate 4. After successful inspection, each chamber undergoes a documented test run Condition: used Scope of delivery: (see pictures) (Subject to changes and errors in technical data and specifications!) Further questions can be answered by phone.

Stand: meget god (brugt), Feutron Type: 3702/06 Climate Test Chamber, Water-cooled Technical Data: Test Chamber Nominal Volume: 2.0 m³ Dimensions: Outer chamber, with humidifier console Width 2970 mm, Height 2370 mm, Depth 1530 mm Rsdpfx Aek E Hnqobner Rear Panel Minimum installation dimensions: Width 2970 mm, Height 2390 mm, Depth 1550 mm Test Space: Width 2000 mm, Height 1000 mm, Depth 1000 mm Door: Double-leaf, Clear opening width 2000 mm, Height 1000 mm Viewing Windows: Heated, 2 pcs, Width 500 mm, Height 600 mm Access Port: 1 pc, left side wall, ∅ 75 mm Temperature Range: -40...100°C Climatic Range: 10...95°C Temperature Variation Over Time: ≤ ± 0.5...± 1.0 ΔN/K Change Rates measured at air supply without load Cooling up to average 2.0 K/min Heating up to average 2.0 K/min Humidity Range: 10...95% r.h. Humidity Variation Over Time: ≤ ± 3.0% r.h. Dew Point Range, temporarily up to -5...95°C Refrigeration System: water-cooled, semi-hermetic Bitzer unit Refrigerant: R507 (Μ-Κ1) Climate and Dryer Refrigeration Unit air-cooled /hermetic system Refrigerant: R134a (Μ.ΚΚ) Power Supply: Electrical Connection: 400V 3/N/PE.AC, 50Hz Mains Plug: CEE 5-pin, 32 A, with 5.0 m cable Max. Simultaneous Power Demand: 10.0 kW Supply Line Fuse: 3x 25A characteristic C Degree of Protection: IP20 Weight: 1300 kg Condition: used Scope of Delivery: (See picture) (Subject to changes and errors in technical data and information!) For further inquiries, feel free to contact us by phone.
